Paper Loader

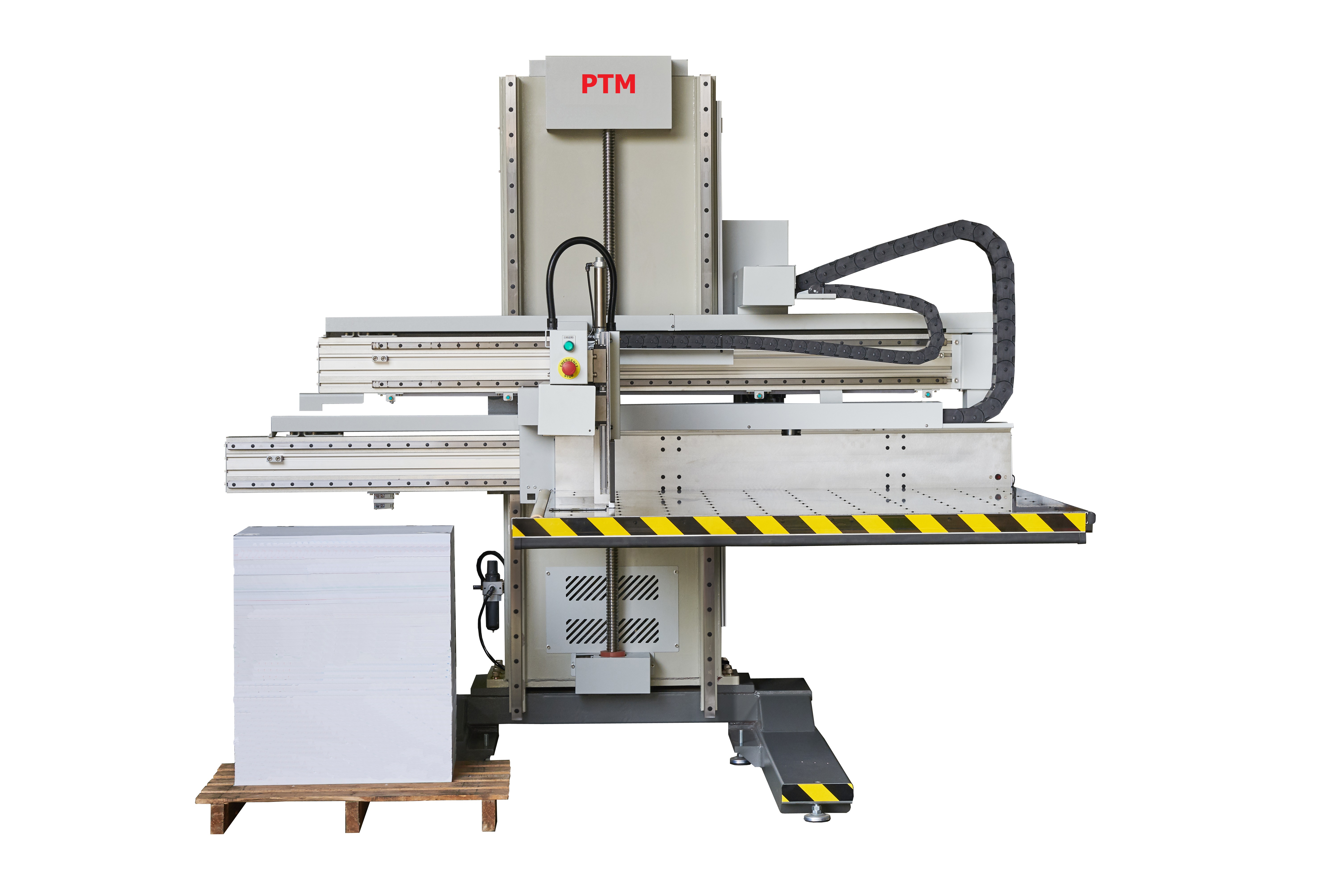

#LD - Paper Loader

1. Loading the Papers is an essential step in the cutting process which accelerates the opesperator's work.

2. #UL Paper Unloader can be freely connected and also can be used independently in other places.
3. Sensitive Infrared system ( imported ) to detect the paper height 100% accuracy.
4. Work table equip with ball screw and linear bearing for smooth movement.
5. Fully automatic type, Cost-effective with a small working space!
6. #UL enables you to compensate for differences between cutting and shaking times.
7. Fit for various weight paper easily, electric cost saving and improve work efficiency.

Performance Characteristic
Model	LD-120	LD-168
Sheet size max	1000 x 1200	1280 x 1680
Sheet size min	400 x 400	600 x 600
Ream height max	30-150	30-140
Stack height max	1600	1500
Carring capacity max	200	300
Machine size	1915x2500x2190	2250x3740x2100
Total weight	1250	1800
Working height	2590	2600
Power (KW)	1.5	1.5
Compressed Air (l/min)	6~8	6~8
