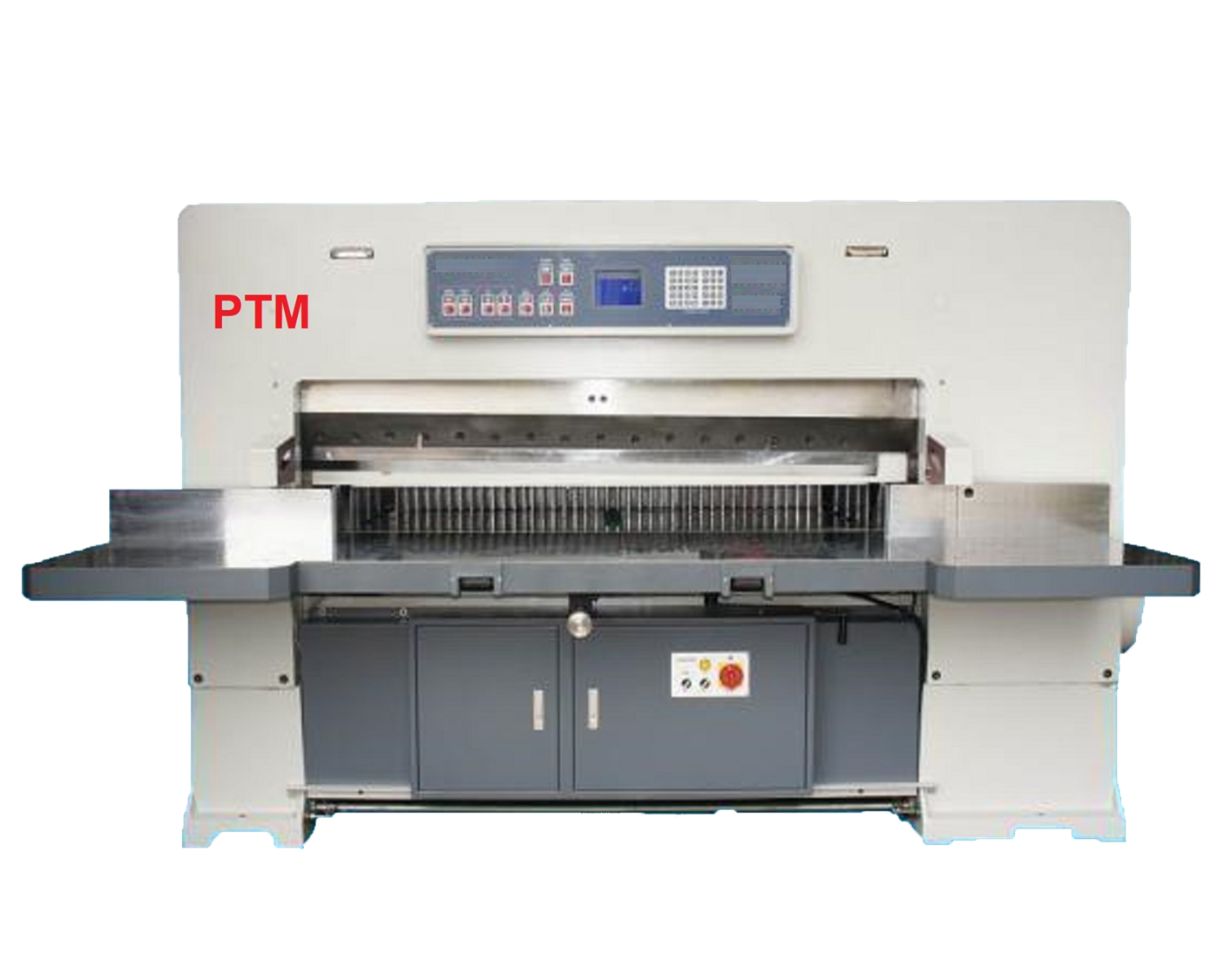

Single Pulling Guillotine

#SCT - Single Pulling Guillotine

Performance Characteristic
Spec/Model	SCT-66	SCT-72	SCT-94	SCT-106	SCT-121	SCT-151	SCT-166
Cutting Thickness /mm	120	120	135	135	135	135	135
Cutting Width /mm	660	720	940	1060	1210	1510	1660
Cutting Length /mm	660	720	940	1060	1210	1420	1660
Front Table Length /mm	540	540	630	630	630	630	630
Table Height /mm	820	820	860	860	860	860	860
Machine Length /mm	1720	1780	2160	2340	2600	2800	2820
Machine Width /mm	1510	1570	2160	2450	2500	3020	3200
Machine Height /mm	1470	1470	1500	1560	1800	1800	1800
Electrical Supply(Dia./N)	φ3/220V	φ3/220V	φ3/220V	φ3/220V	φ3/220V	φ3/220V	φ3/220V
Net Weight (kg)	1500kg	1550kg	2200kg	2400kg	3500kg	4000kg	4700kg
Main Motor	1HP	1HP	3HP	3HP	5HP	5HP	5HP

Cutting blade driven by worm wheel and magnetic clutch. Machine constructed by high strength casting.
Photo-sensor for safety. The back guard equip with linear bearing for smooth movement, exact position-setting , wearing endurance.Labor-saving, quickly structure for change Knife.
Work table slot is cover by the belt , avoid the paper dust drop into the slot.
Cutting use : veeneer, suitable for paper, cardboard, corrugated paper, thin plastics(PVC, PE, PP, PU), leather slice, slice fiber cloth, thin glass, clothes, cork, etc.
Metric, Taiwanese, and British system of computerized, measure setting for your free options.
