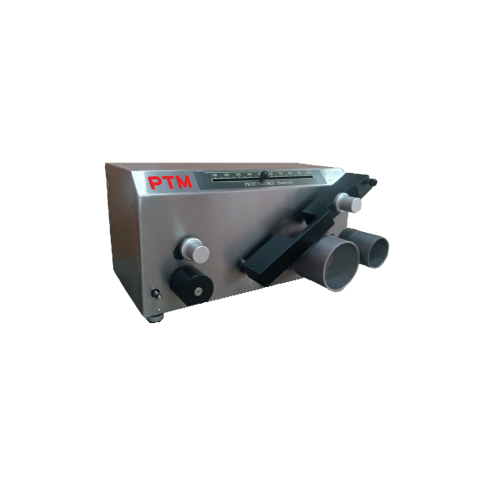

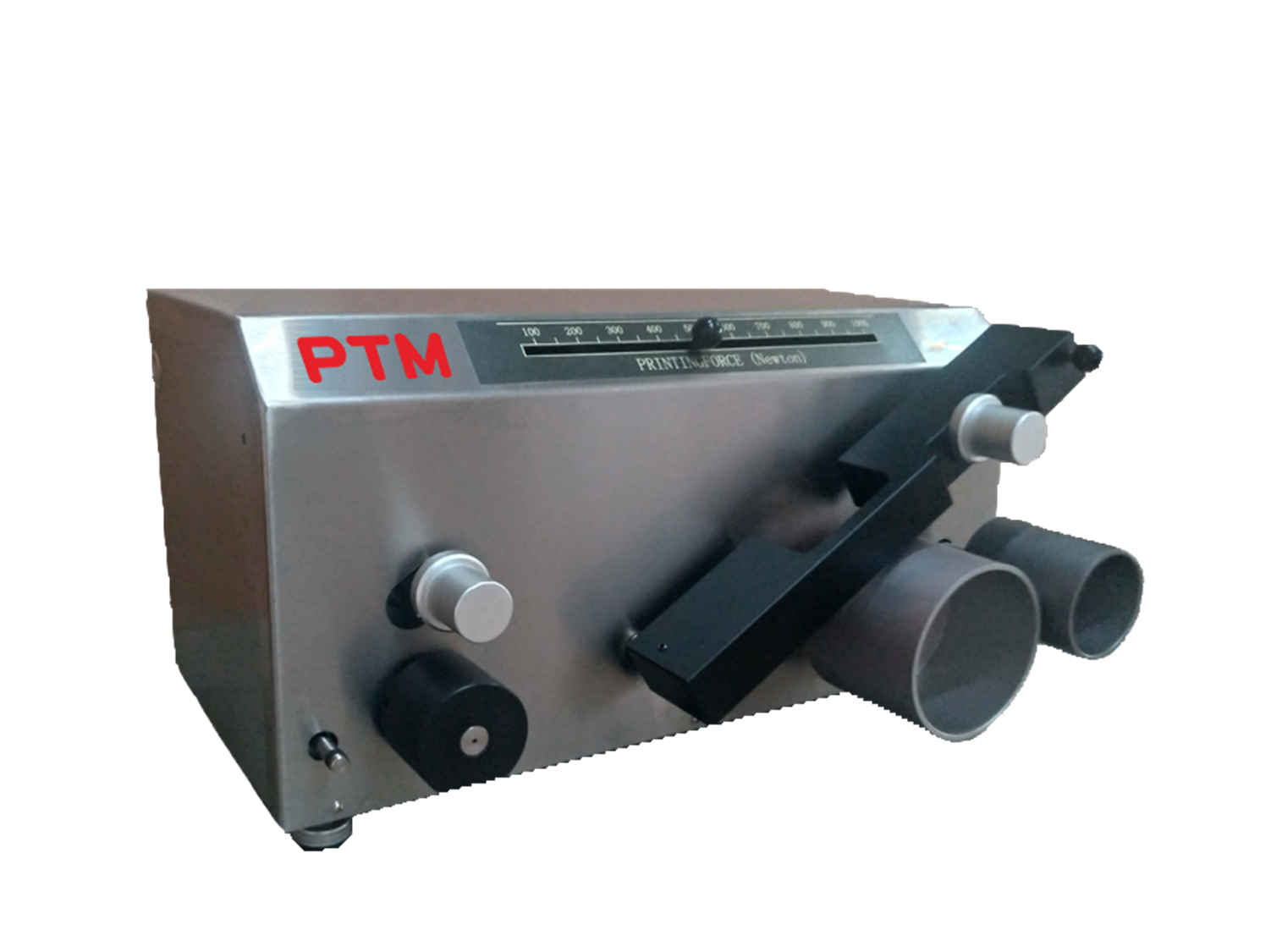

Ink Proofer

Detail

#IP-10 / Ink Proofer


  • Trustable & Compact
  • Driven Independentaly
  • Inking time rapidly
  • Include 2 Alminium drums and 1 rubber roller
  • Printing pressure on the material automatically
  • Printing pressure : 100-1000N
  • Speed : 0.2 Meter / second
  • Printing width:  35mm
  • Printing Length: 230mm
  • Weight < 250g
  • Ink type : Conventional ink or UV ink.
  • Fashion outlook
  • Can be printed on various material.
  • Machine dimension L x W x H =  410 X 480 X 410 mm  / N.W = 38kg
  • Wooden case packing = 450 x 530 x 460 mm  / G.W. = 45kg
