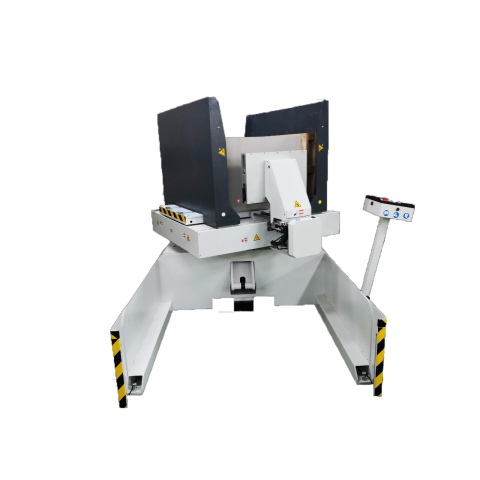

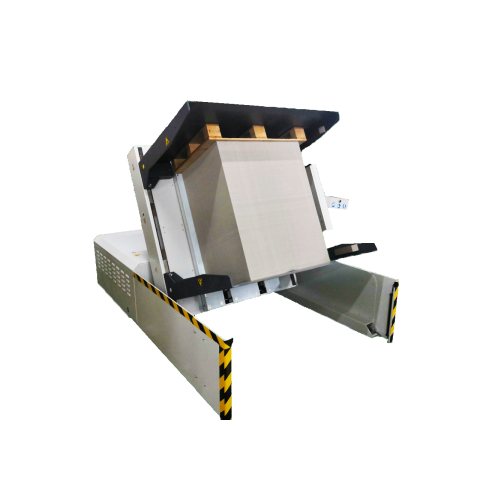

PT-1200A
P i l e T u r n e r
PT Series - Powerful and Tough
The PTM model year 2021 Pile Turner appears in a new and modern design, focused on functionality, user-friendly and cost-effective.
The main features include: turning, dust removing, aligning, jogging, ink dry acceleration ,and odor neutralizing.
Design and made in Taiwan
The machine is made in Taiwan and passed the CE certificate. The machine parts are mainly made in Taiwan. Some centerpieces are made in Japan or Germany.
We strive to find the best balance between good quality and reasonable price. The PTM pile turner is surely a very cost-effective choice.
Product Features
Format Ranges
Max format range is from 1,200 x800mm (PT-1200A) to 1,650x1,220mm (PT-1650A).
Main Functions
Turning, dust removing, aligning, jogging, ink dry acceleration, slewable control desk, and odor neutralizing.
| 機器規格 | ||
| Model | PT-1200A | PT-1650A |
| Paper Size | Max.1,200 x 8,00 mm | Max.1,650 x 1,220 mm |
| Platform Height | Max.1,350 mm Min. 700 mm |
Max.1,650 mm Min. 980 mm |
| Platform Width | 1,250mm | 1,750mm |
| Maximum Load | Max.1,000kg | Max.1,800kg |
| Power Consumption | 30A | 60A |
| Machine Weight | 1,950kg | 3,050kg |
| Machine Size(w/o turning range) | 2,675Lx,2,365Wx1,400H mm | 3,510L x 2,810W x 1,750H mm |
| Machine Size(incl. turning range) | 2,675Lx,2,365Wx1,850H mm | 3,510L x 2,810W x 2,400 H mm |
The machine picture and specifications are for reference only, please refer to the actual machine. It will be changed without prior notice. All rights of interpretation belong to the company.
